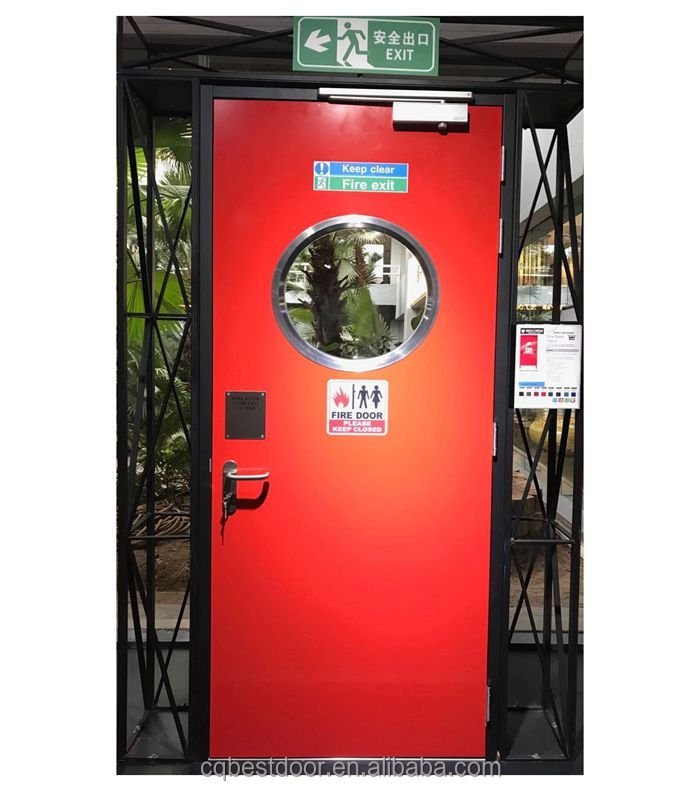

FIRE DOOR WITH GLASS Vision Panel

????Ʒ???

Application: Supermarket, Laundry, Workshop, Exterior, Warehouse, Park, Storage and Closet, Hospital

Position: Commercial

Type: 5

Feature: fire prevention

Door Material: Steel

Opening Method: Manual

Design Style: Modern

Main Material: Steel

Material: steel

Sliding Door Type: 0

Surface Finishing: Finished

Warranty: 1 Year

After-sale Service: Other

Project Solution Capability: total solution for projects, Others

Door Type: Glass

Place of Origin: Chongqing, China

Brand Name: Mexin Best

Model Number: GLASS FIRE DOOR

Open Style: Swing

Fire Rated: 90/180 minutes

Selling Units: Single item

Brand: Mexin /Customer's Specified Brand

Certifications: UL Category Number R38440/R38447 Intertek Certificate number: WHI15-21778302/WHI15-21778301

Standard: CAN/ULC-S104-10, Fire Tests of Door Assemblies ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies UL 10(c) (2016), NFPA 252 (2017)

Limitations: Single Swing(Maximum Sizes) 45 mm (1.75 inches) Minimum Thickness 1208 mm (48 inches) Maximum Width 2416 mm (96 inches) Maximum Height Pairs(Maximum Sizes) 45 mm (1.75 inches) Minimum Thickness 2416 mm (96 inches) (each leaf: 1208 mm (48 inches)) Maximum Width 2416 mm (96 inches) Maximum Height

Filling Material: Foam or Honeycomb Core

Louvers: maximum 576 sq. inches (24" x 24") for up to 90 Minute locations. Requires the use of minimum 18 ga. steel channel reinforcement attached to both faces around the louver cutout.

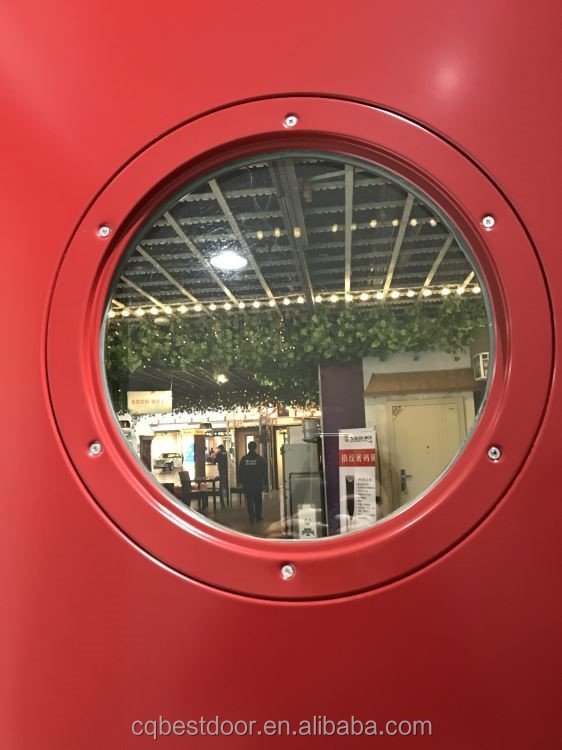

Vision Panels: maximum 1296 sq. inches for 20 and 45 minute locations; 100 sq inches for 60 and 90 Minute locations. Glazing kit for light kits requires use of minimum 18 ga. steel channel reinforcement attached to both faces around the vision panel cutout.

Package: Wooden pallet/ Carton

Surface finish: Paint/Powder coating/Heat transfer

Color: RAL

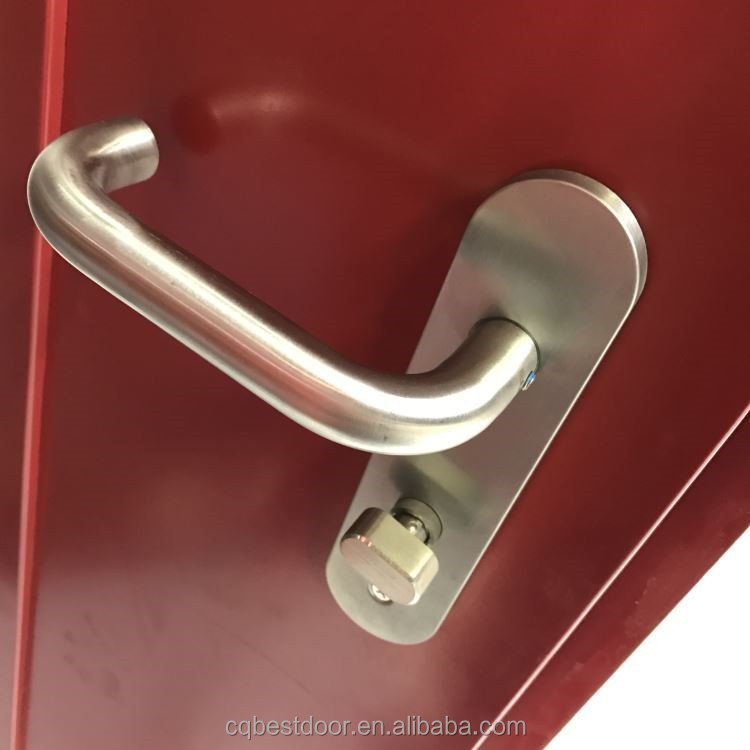

Standard fireproof hardware accessories: UL Listed hardwares

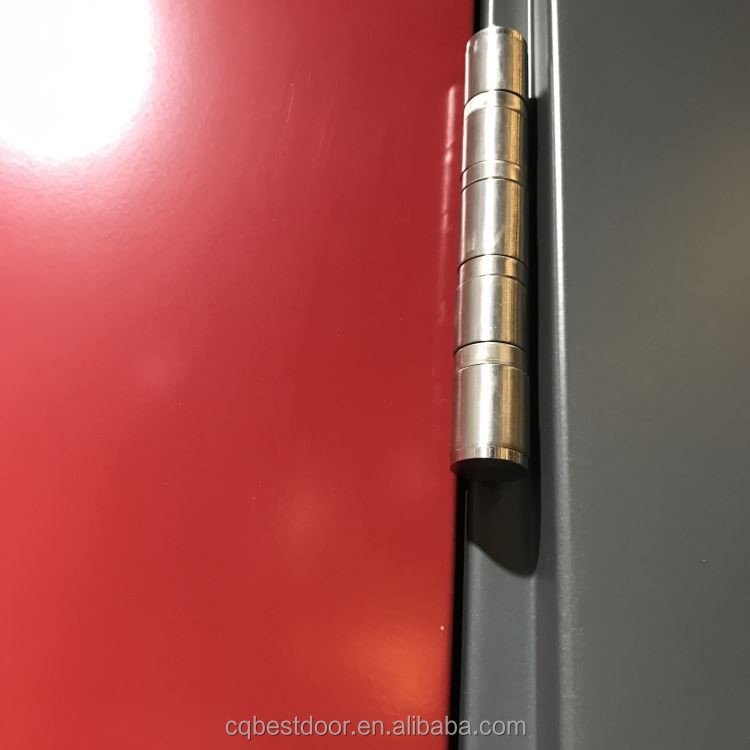

Features: 1¾" standard; also available in 1 3/8" Any manufacturer's hinge locations 18-gauge A60 galvannealed steel standard Continuously welded vertical edges (seamless) standard Rust inhibitive prime coat ANSI/SDI 250.10 Also available as a stock door

Material Options: 16-gauge, 14-gauge and 12-gauge steel G90 galvanized steel Stainless steel Resin impregnated honeycomb

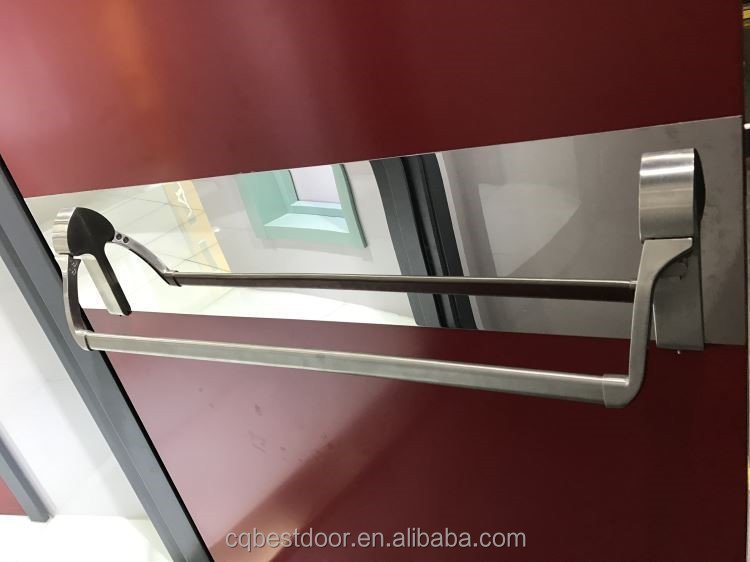

Other Options: Up to 3 hour fire label Integral lite option Integral louver option Flush top cap Any manufacturer's Deadlock prep, Panic
