Home » Products » Metal Fire doors » Steel Hospital Double Door with Glass Window Andsteel Fire Door Kick Plate- Hermetic
Certified

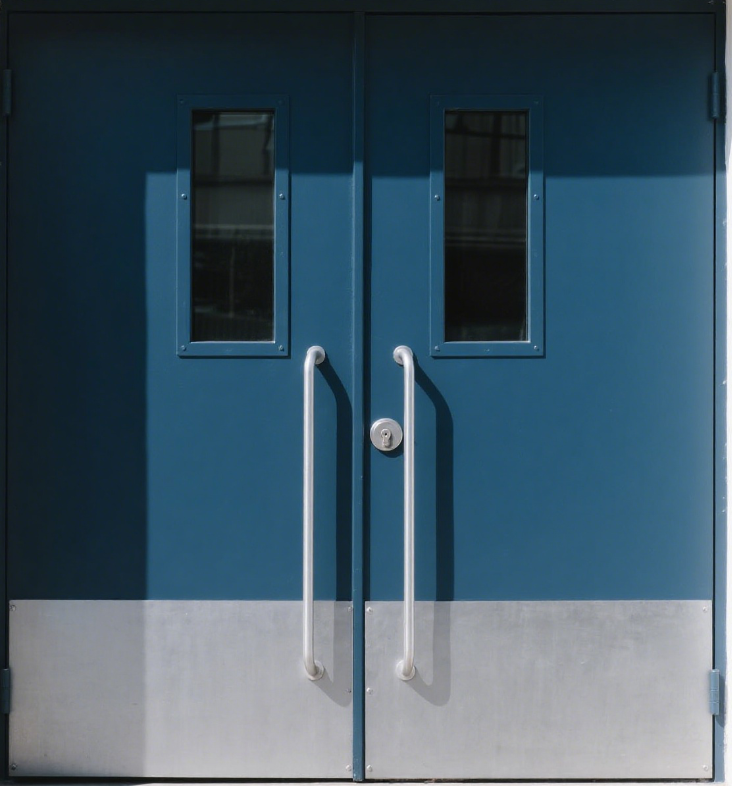

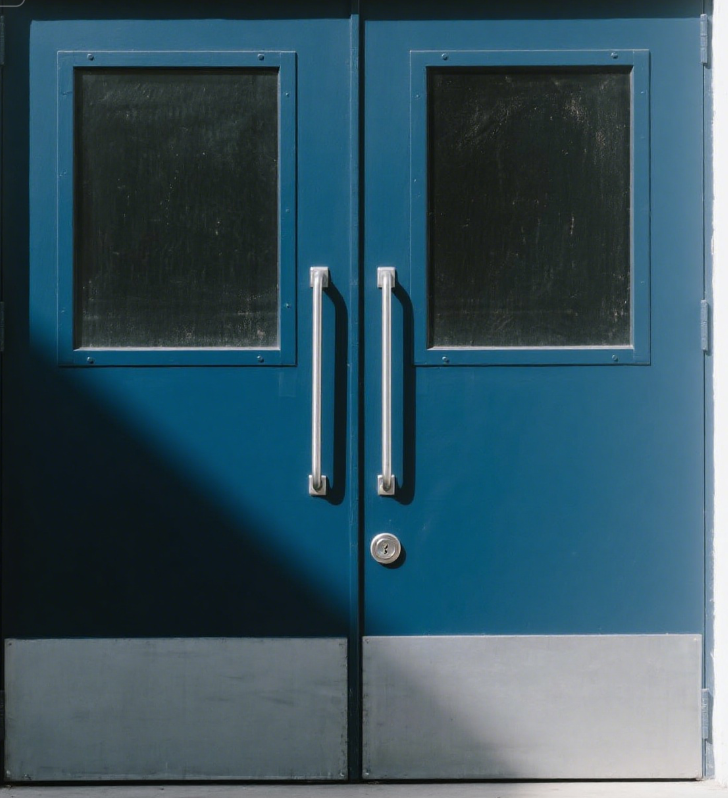

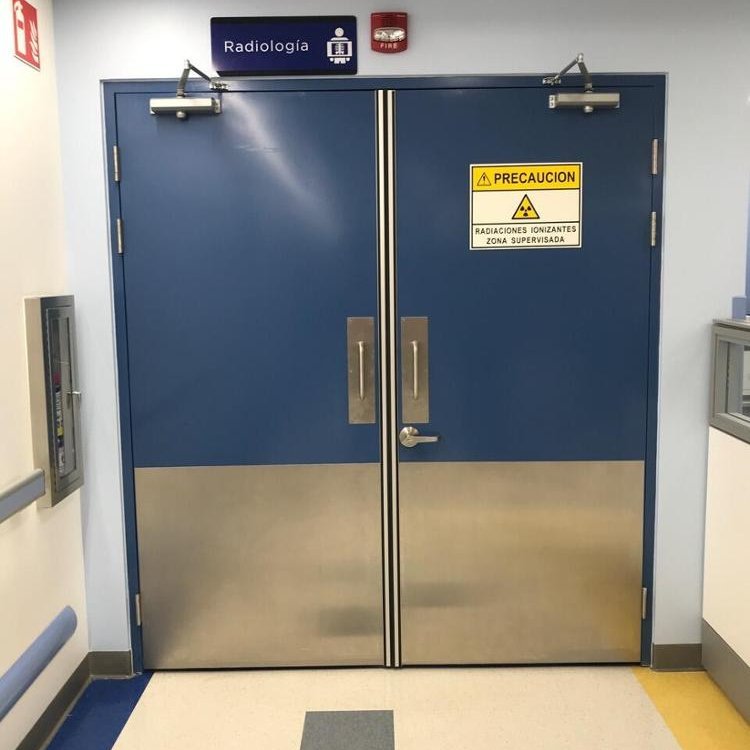

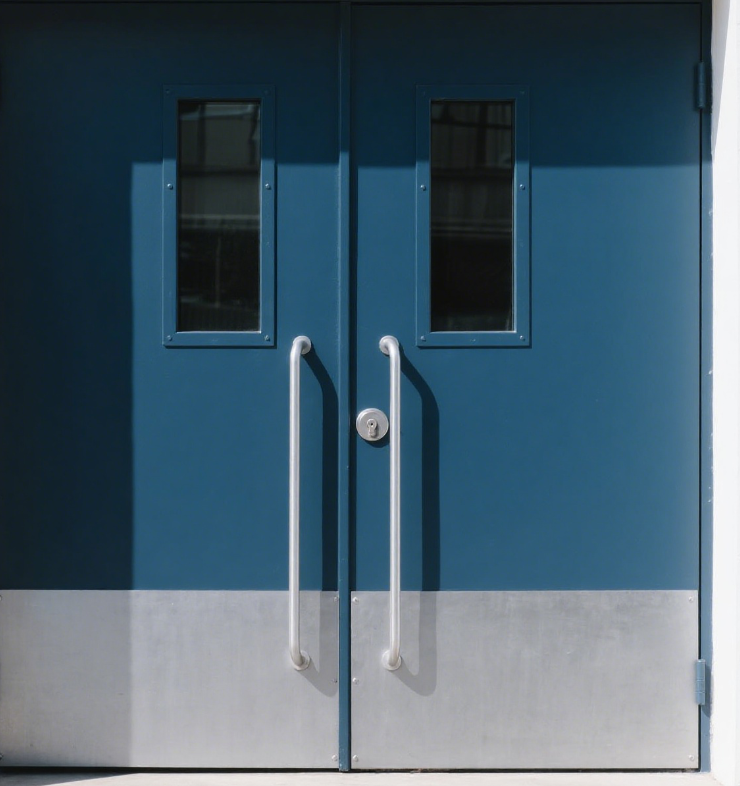

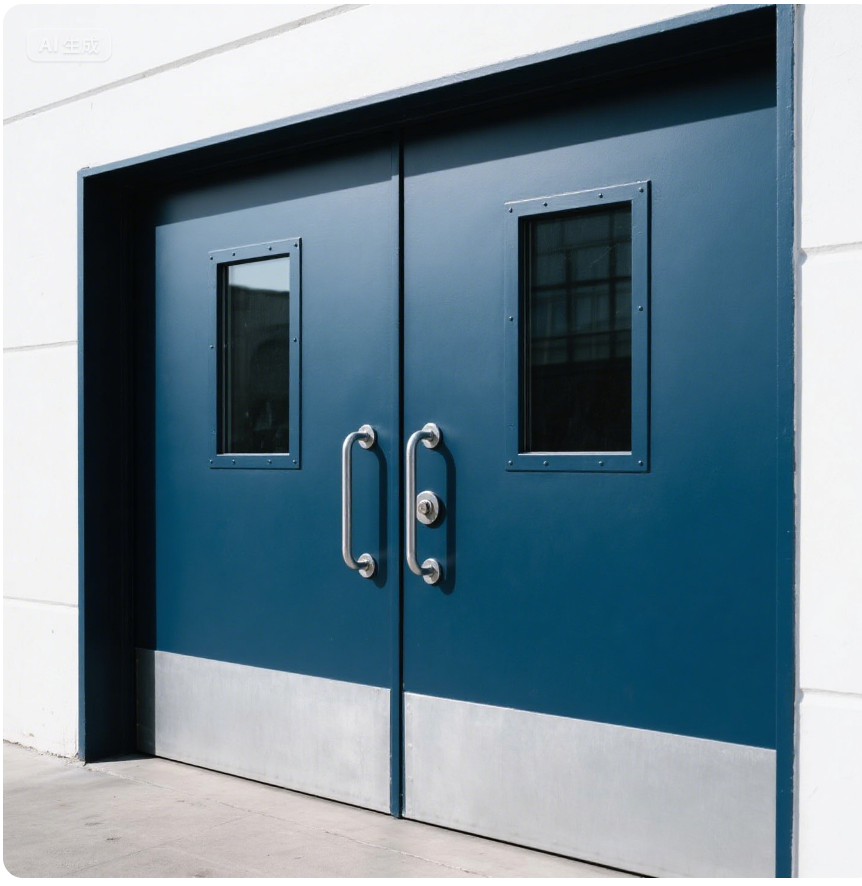

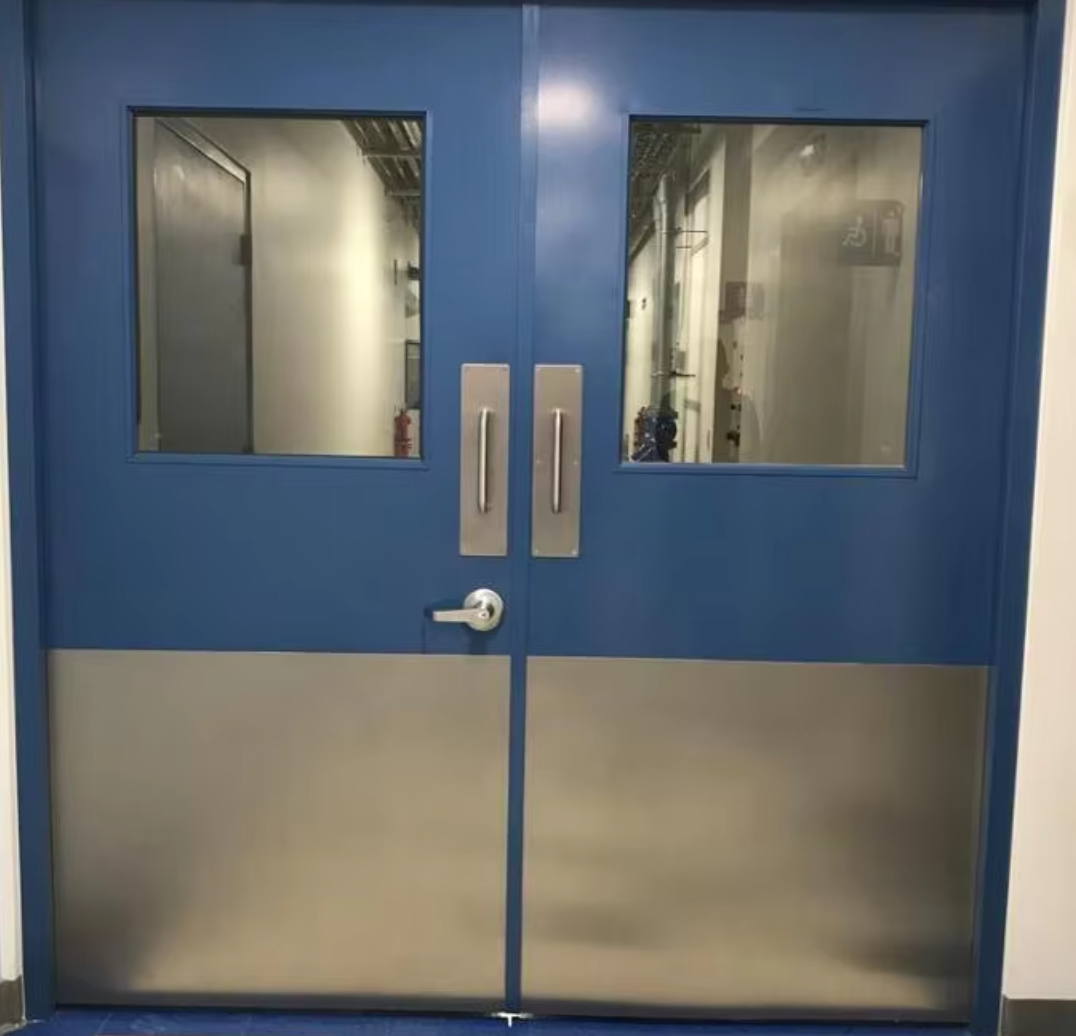

Steel Hospital Double Door with Glass Window Andsteel Fire Door Kick Plate- Hermetic

$150

Mexin Steel Hospital Double Door with Glass Window Andsteel Fire Door Kick Plate- Hermetic

MOQ10 sets
Price Range$150 / set
Live Chat
Description

????Ʒ???

Application: Hospital

Position: Commercial

Type: fire rated doors

Feature: fire prevention

Door Material: Steel

Opening Method: Push and Pull

Special Door Type: 0

Design Style: Modern

Main Material: Steel

Material: steel

Sliding Door Type: 1

Surface Finishing: Finished

Warranty: 1 Year

After-sale Service: Online Technical Support, Onsite Installation, Onsite Training, Free Spare Parts, Return and Replacement

Project Solution Capability: graphic design, total solution for projects, Others

Door Type: Polymer

Screen Netting Material: Stainless Steel

Place of Origin: Chongqing, China

Brand Name: Mexin Best

Model Number: BT1WB2000NG/00

Open Style: Swing

Selling Units: Single item

????Ʒ??????

WH / UL fire rated steel door for Hospital Certifications: WH (22241/24966) , UL (R38440/R38447)

Fire rating: 20-180 minutes

Door leaf: 45mm thick Vision panel Cesiumpotassium glass Sheet thickness 0.8/1.0/1.2mm, galvanized steel/cold roll steel

Door frame: Sheet thickness 1.4mm, cold roll steel/galvanized steel

Surface finish: Door leaf and frame powder coated in RAL color

Hinges: UL listed 4.5"x4.5"x3.4mm stainless steel hinge w/2 ball bearings

Lock: UL listed Panic bar exit device with lever handle Fire-resistant mortise lock with profile cylinder, keys and lever handle Closing devices: UL listed overhead door closer Smoke seal: UL listed

Kick Plate-304 Stainless Steel

Product Video
Video coming soon
Production Process

From Raw Sheet to Finished Door

01
Appearance design

Appearance Design

In-house CAD drawing & engineering

02
CNC cutting

CNC Cutting

Fiber-laser cutting of steel sheet

03
Bending

Bending

CNC bending to precise profiles

04
Welding

Welding

Frame assembly & seam welding

05
Polishing

Polishing

Surface grinding & finishing

06
Gluing

Gluing

Panel bonding & assembly

07
Hot pressing

Hot Pressing

Lamination under heat & pressure

08
Painting line

Painting Line

Overhead conveyor coating

09
Appearance inspection

QC Inspection

Appearance & dimensional check

10
Packing

Packing

Export-grade protective packing

5Production lines
12,208 m²Factory floor space
24R&D engineers
10QA/QC inspectors
FAQs
Founded in 2002 in Chongqing, China, we are a professional manufacturer and exporter specializing in fire doors, safety doors, interior doors and related products.
We are a direct factory, a leading door manufacturer.
We hold ISO9001 certification, and our products have passed US ITS and UK BS fire resistance tests, with strict quality control throughout production.
Yes. We support OEM & ODM, including custom materials, finishes, colors, sizes and hardware.
Wide product range, stable quality, competitive factory prices, strong project solution capability, global export experience and on-time delivery.
