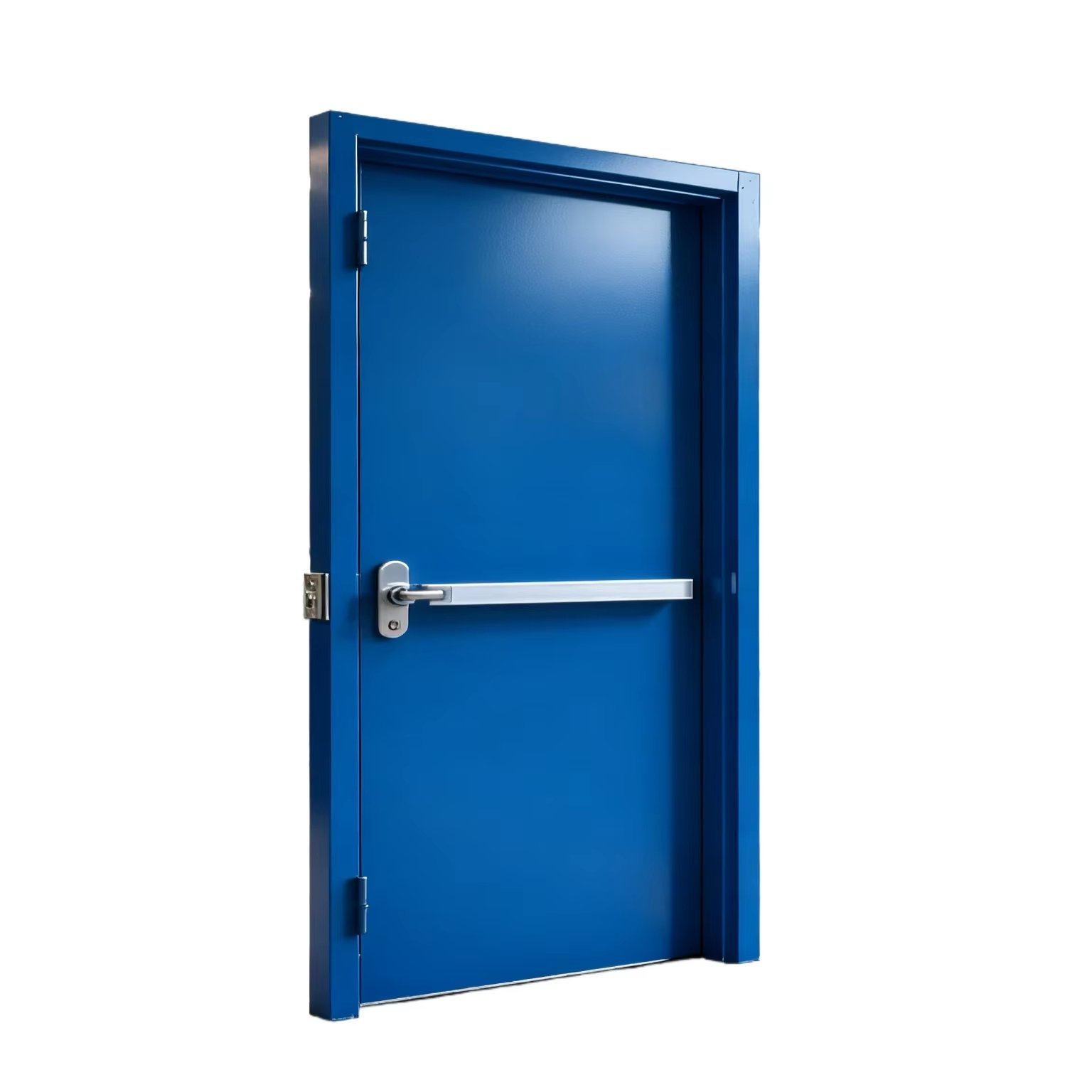

UL Listed 3 Hours Fire Rated Galvanized Powder Coating Hollow Metal Doors with Honeycomb Paper

????Ʒ???

Brand: Mexin /Customer's Specified Brand

Fire rated: 20-180 mins

Certifications: UL Category Number R38440/R38447? Intertek Certificate number: WHI15-21778302/WHI15-21778301

Standard: CAN/ULC-S104-10, Fire Tests of Door Assemblies

ANSI/UL 10C, Positive Pressure Fire Test of Door

Assemblies? UL 10(c) (2016), NFPA 252 (2017)

Limitations: Single Swing(Maximum Sizes)

45 mm (1.75 inches) Minimum Thickness

1208 mm (48 inches) Maximum Width

2416 mm (96 inches) Maximum Height

Pairs(Maximum Sizes)

45 mm (1.75 inches) Minimum Thickness

2416 mm (96 inches) (each leaf: 1208 mm (48 inches)) Maximum Width

2416 mm (96 inches) Maximum Height

Filling Material: Foam or Honeycomb Core

Louvers: maximum 576 sq. inches (24" x 24") for up to 90 Minute locations. Requires the use of minimum

18 ga. steel channel reinforcement attached to both faces around the louver cutout.

Vision Panels: maximum 1296 sq. inches for 20 and 45 minute locations; 100 sq inches for 60 and 90

Minute locations. Glazing kit for light kits requires use of minimum 18 ga. steel channel reinforcement

attached to both faces around the vision panel cutout.

Package: Wooden pallet/ Carton

Surface finish: Paint/Powder coating/Heat transfer

Color: RAL

Standard fireproof hardware accessories: UL Listed hardwares

Features: 1?" standard; also available in 1 3/8"

Any manufacturer's hinge locations

18-gauge A60 galvannealed steel standard

Continuously welded vertical edges

(seamless) standard

Rust inhibitive prime coat ANSI/SDI 250.10

Also available as a stock door

Material Options: 16-gauge, 14-gauge and 12-gauge steel

G90 galvanized steel

Stainless steel

Resin impregnated honeycomb

Other Options: Up to 3 hour fire label

Integral lite option

Integral louver option

Flush top cap

Any manufacturer's Deadlock prep, Panic

Application: Office Building

Position: Commercial

Type: 3

Feature: fire prevention

Door Material: Steel

Opening Method: Push and Pull

Special Door Type: 0

Design Style: Modern

Main Material: Steel

Material: steel

Sliding Door Type: 0

Surface Finishing: Finished

Warranty: 3 Years

After-sale Service: Online Technical Support, Free Spare Parts

Project Solution Capability: graphic design

Place of Origin: Chongqing, China

Brand Name: MEXIN

Model Number: BT1MX2000XX/00

Certificate: UL&WHI

Hardware: Chinese Top Brand

Size: 2100*900MM

Open Style: Swing

Selling Units: Single item

????Ʒ??????

Company Information:

Company Information

Chongqing Mexin Best Doors & Windows Industry Co., Ltd is one of leading door manufacture in China, which established in 1989.Mexin Best has taken the lead in terms of innovation, manufacture, marketing and after service, and is striving to forge a world door base. Mexin Best enjoys large market shares in more than 50countries around the world such as US,European countries, South Asian and Middleeast. Main products covers fre rated doors, safety security doors, commercial doors, timber doors and automatic garage doors.Mexin Best has obtained various certifications such as UL, WHI(US),BS(UK)CE,COC,SONCAP(Nigeria), Q-MARK,FSC,GA(China) andISO90001:2000 international quality certification.
