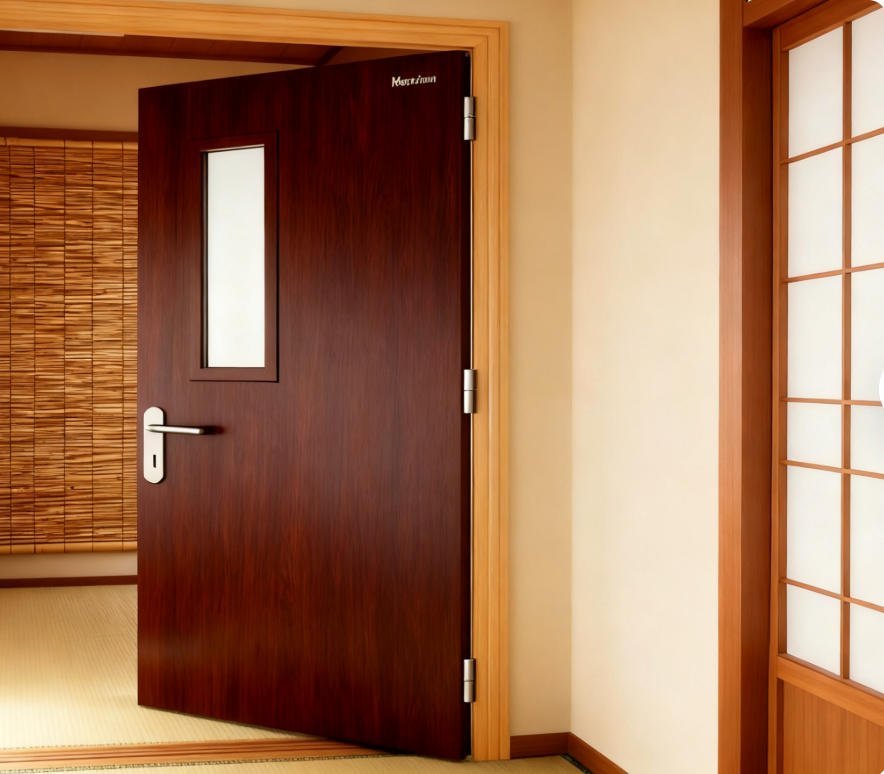

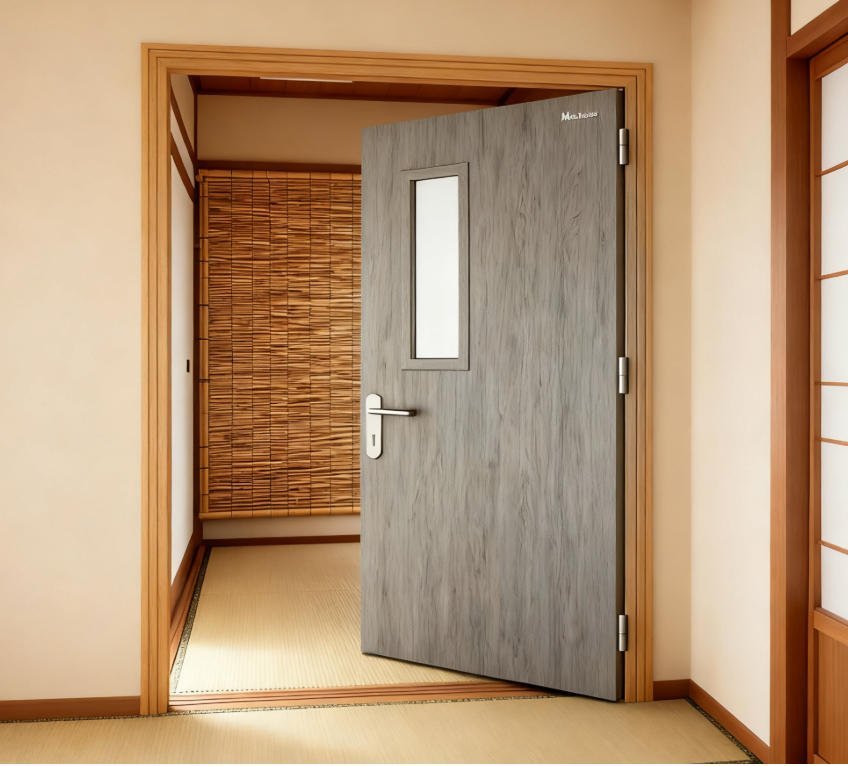

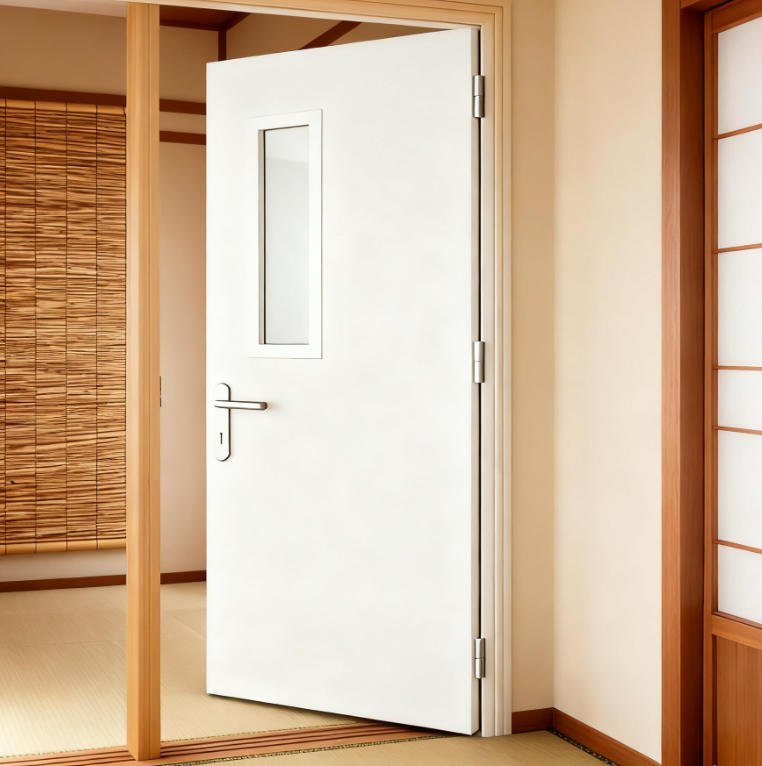

Wooden Doorleaf Steel Frame Composite Fire Rated Commercial Door with Glasskit

????Ʒ???

Brand: Mexin /Customer's Specified Brand

Fire rated: 20-60 mins

Certifications: Intertek Certificate number: WHI23-21778310/WHI23-21778309

Standard: Criteria CAN / ULC S104 (2015) (R2020)

Criteria UL 10(b) (2008) (R2020)

Criteria UL 10(c) (2016) Ed. 3 (R:27 May 2021)

Criteria NFPA 252 (2022)

Limitations: Standard Pair Active leaf: 1215 mm wide x 2721 mm high

Inactive leaf: 1215 mm wide x 2721 mm high

Single 1215 mm wide x 2721 mm high

Stile &Rails: 2" Stile on both sides, 2" Top & Bottom Rails on 30/68,30/70,36/70,40/70 doors

Lites frame: Lites available with glazing;UL Listed 6" Minimum around all edges

Louvers: Up to 24"x 24"; Louver(s) allowed in doors with lite openings,

Core: Solid particle board /Mineral Core

Package: Wooden pallet/ Carton

Surface finish: Wood veneer/ PVC film / Painting/Melamine paper

Color: Customized

Acoustical rating: 38 STC Operable

Standard fireproof hardware accessories: UL Listed hardwares

Applications: For Architectural use

Warranty: 5 years

Application: School

Position: Commercial

Type: commercial door

Feature: fire prevention

Door Material: Solid Wood

Opening Method: Manual

Special Door Type: 0

Design Style: Modern

Material: solid wood

Sliding Door Type: 0

Surface Finishing: Finished

After-sale Service: Free Spare Parts

Project Solution Capability: total solution for projects, 3D model design, Cross Categories Consolidation, Others

Place of Origin: Chongqing, China

Brand Name: Mexin Best

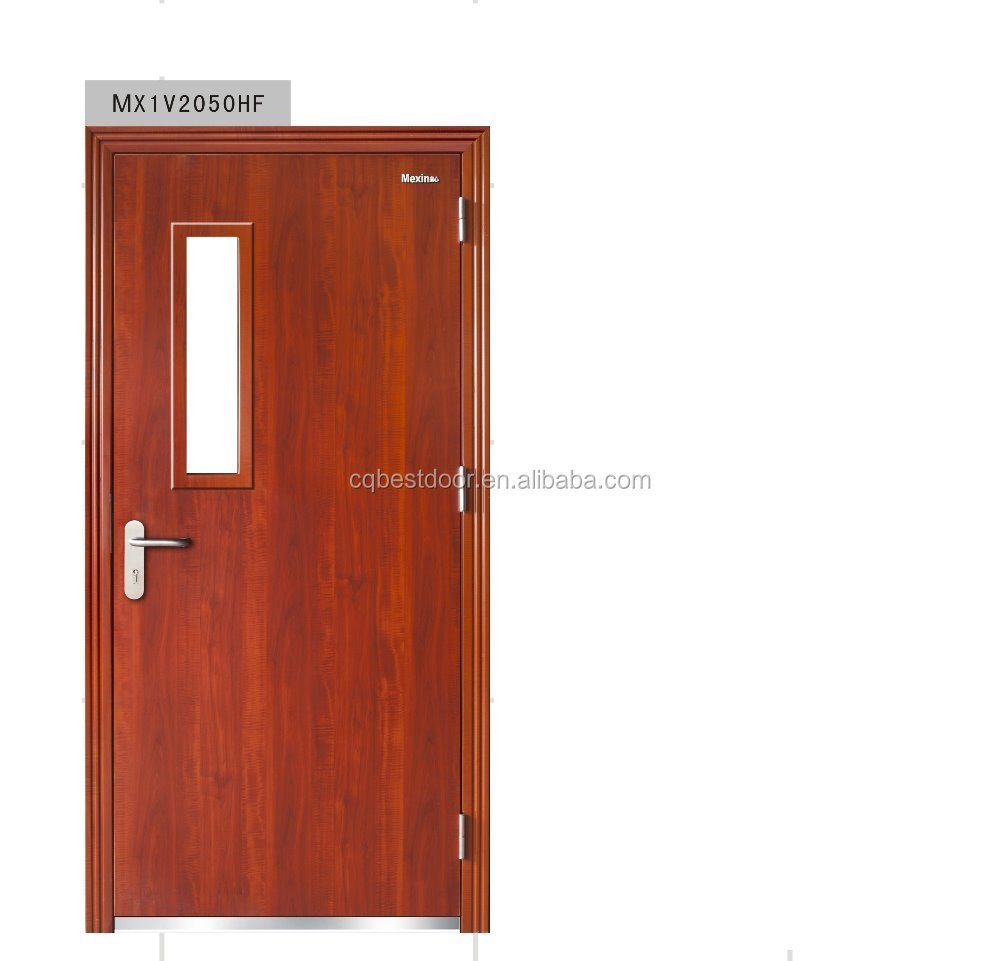

Model Number: MX1V2050HF

Open Style: Swing

Selling Units: Single item

????Ʒ??????

Product Description:

Product Description

1. Fire doors with wood grain paper?film coating

2. Door leaf thickness: 45mm

3. Steel sheet of door leaf:Fire proof board, Perlite,

4. Steel sheet of door frame: 1. 5mm cold rolled steel sheet

5. Filling material: Perlite wood rail

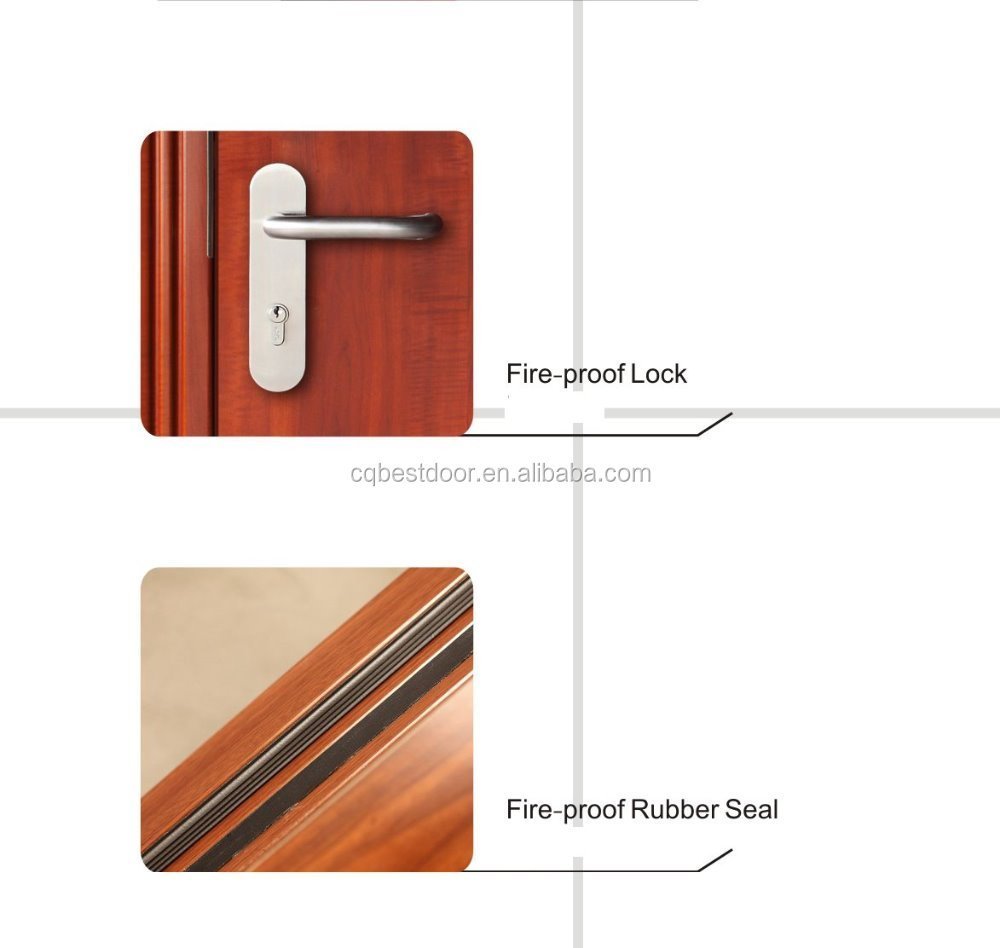

6. Lock: fire lock

7. Diversified designs and colours are available

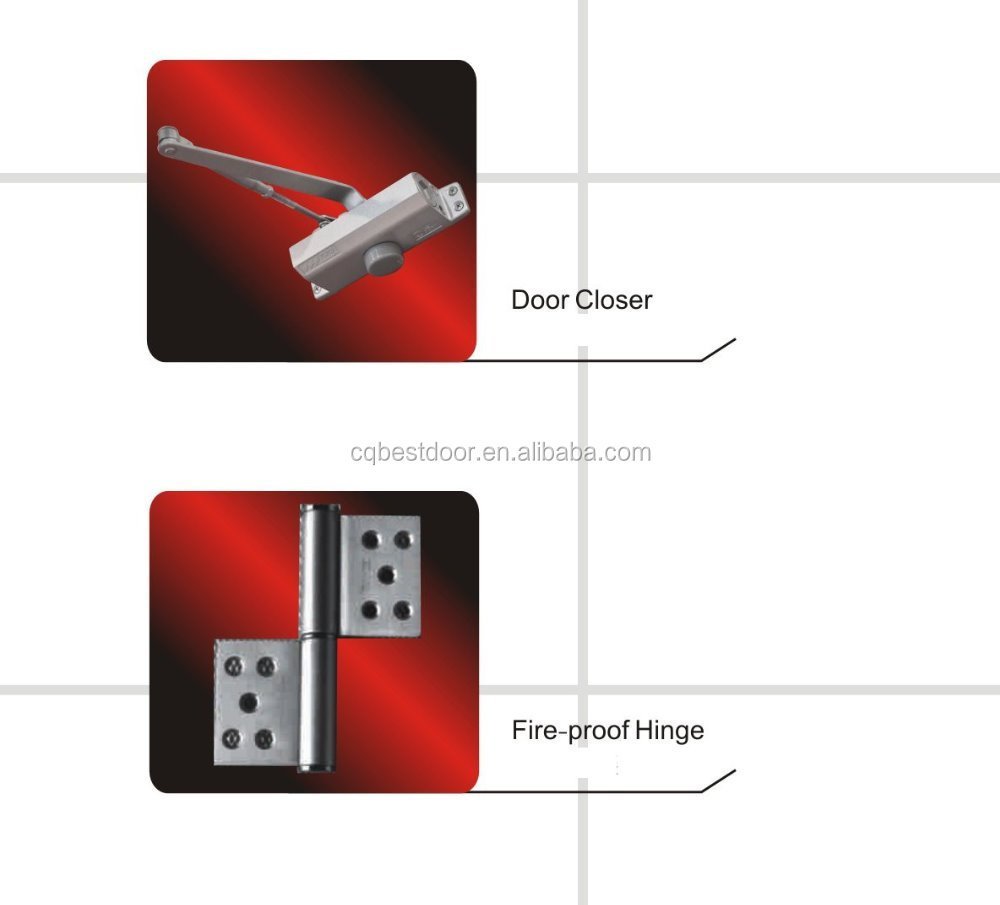

8. Hinges: 3 Stainless steel hinges (external hinge, openning 180 degrees) or 3 galvanized

steel hinges (interior hinge, openning 90 degrees)

9. Threshold: Stainless steel threshold

10. Accessories: hinges, fire locks, handles, fireproof rubber seal, installing bolts

11. Weight: 75KGS/set

Brand? Mexin /Customer's Specified Brand

Fire rated 20-60 mins

Certifications Intertek Certificate number: WHI23-21778310/WHI23-21778309

Standard? Criteria CAN / ULC S104 (2015) (R2020)

Criteria UL 10(b) (2008) (R2020)

Criteria UL 10(c) (2016) Ed. 3 (R:27 May 2021)

Criteria NFPA 252 (2022)

Limitations Standard Pair Active leaf: 1215 mm wide x 2721 mm high

Inactive leaf: 1215 mm wide x 2721 mm high

Single 1215 mm wide x 2721 mm high

Stile &Rails 2" Stile on both sides, 2" Top & Bottom Rails on 30/68,30/70,36/70,40/70 doors

Lites frame Lites available with glazing;UL Listed 6" Minimum around all edges

Louvers Up to 24"x 24"; Louver(s) allowed in doors with lite openings,

Core Solid particle board /Mineral Core

Package Wooden pallet/ Carton

Surface finish Wood veneer/ PVC film / Painting/Melamine paper

Color Customized

Acoustical rating 38 STC Operable

Standard fireproof hardware accessories UL Listed hardwares

Applications For Architectural use

Warranty? 5 years

Company Information:

Company Information

Chongqing Mexin Best Doors & Windows Industry Co., Ltd is one of leading door manufacture in China, which established in 1989.Mexin Best has taken the lead in terms of innovation, manufacture, marketing and after service, and is striving to forge a world door base. Mexin Best enjoys large market shares in more than 50countries around the world such as US,European countries, South Asian and Middleeast. Main products covers fre rated doors, safety security doors, commercial doors, timber doors and automatic garage doors.Mexin Best has obtained various certifications such as UL, WHI(US),BS(UK)CE,COC,SONCAP(Nigeria), Q-MARK,FSC,GA(China) andISO90001:2000 international quality certification.
